What is thermal transfer printing?
- Thermal transfer printing is a digital printing process that uses a heated printhead to melt a wax or resin-based ink from a ribbon onto a substrate (like a plastic card or paper label).
- Because the ink is physically fused to the material rather than just sitting on the surface, it is the preferred method for any application where durability and longevity are required.
How It Works
The process involves three main components working in a “sandwich” formation:
- The Thermal Printhead: A fixed row of tiny heating elements.
- The Ribbon: A thin film coated with solid ink (wax, resin, or a blend).
- The Substrate: The material you are printing on (PVC cards, synthetic labels, or paper).
When you start a print, the printhead elements heat up and cool down rapidly (in milliseconds), melting the ribbon’s ink and pressing it onto the substrate to create the image or text.

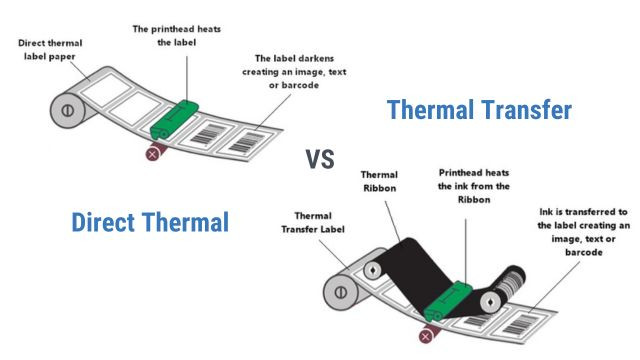

Thermal Transfer vs. Direct Thermal
It is easy to confuse these two, but they are very different in terms of quality and cost:
| Feature | Thermal Transfer | Direct Thermal |
| Ribbon Required? | Yes (Wax or Resin) | No (Uses heat-sensitive paper) |
| Durability | High (Resistant to heat, sun, and chemicals) | Low (Fades/turns black with heat or light) |
| Lifespan | Years | Months |
| Common Use | ID Cards, Asset Tags, Product Labels | Receipts, Shipping Labels, Tickets |
The Three Types of Ribbons
Choosing the right ribbon is critical for your HDP5000 or label printer:
-
Wax Ribbons: The most affordable. Best for paper labels. They offer decent quality but can smudge if rubbed hard.
-
Wax-Resin (Hybrid): A middle-ground option. Better resistance to chemicals and smearing. Used for “semi-gloss” paper and some plastics.
-
Resin Ribbons: The most durable and expensive. They are virtually waterproof, scratch-proof, and chemical-resistant. These are used for heavy-duty plastic ID cards and industrial labels.
Why Use It?
-
Reliability: It produces the sharpest barcodes, which is essential for scanning accuracy.
-
Material Variety: You can print on polyester, polypropylene, vinyl, and even textiles (clothing tags).
-
No Fading: Unlike receipts that go blank in a hot car, thermal transfer prints remain legible for years in harsh environments
-
