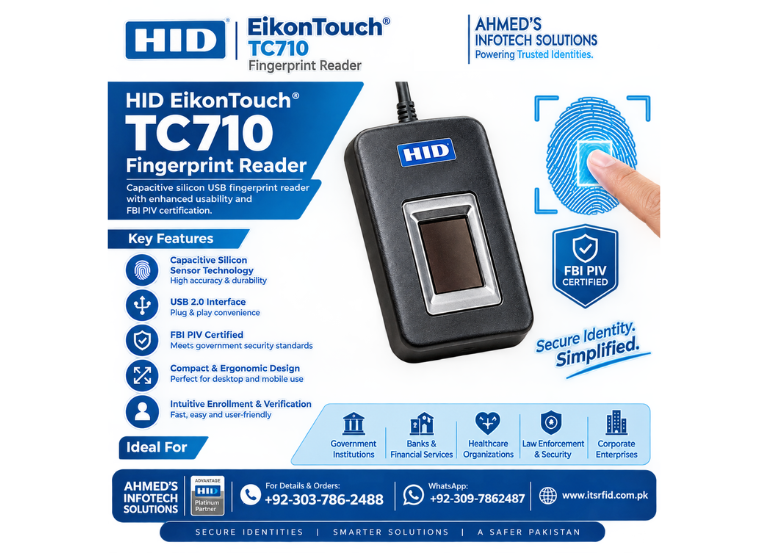

HID EikonTouch TC710 Fingerprint Reader
The HID EikonTouch TC710 Fingerprint Reader is a compact, capacitive silicon USB biometric device built for enterprise, healthcare, and government identity verification.
Key Features & Specifications
- Sensor Technology: Capacitive silicon sensor (TCS1C/TCS1S TouchChip) featuring 508 dots per inch resolution with a 256 by 360 pixel array configuration.
- Certifications & Security: FBI PIV certified, FIPS 201 compliant, and supports AES-256 encrypted USB communication.
- Liveness Detection: HID Eikontouch TC710. Includes Presentation Attack Detection (PAD) / Live Finger Detection (LFD) to block fake or counterfeit fingerprints.
- On-Board Processing: Handles template generation, matching, and stores up to 100 finger templates directly on the device.
- Durability: IP65-rated for dust and moisture protection, with a protective coating rated for over 2 million touches.
- Connectivity Options: Available with USB-A, USB Micro-B, or USB-C interfaces and cable lengths of roughly 20 cm or 183 cm.
- Software Support: Compatible with the DigitalPersona Biometric Software Developer Kit (SDK) and standard Windows Hello integration.
- Physical Specs: Weighs 124g with dimensions of 63.5 x 35 x 14.2 mm, featuring a weighted base for desk stability.
- Fingerprint Reader HID EikonTouch TC710
