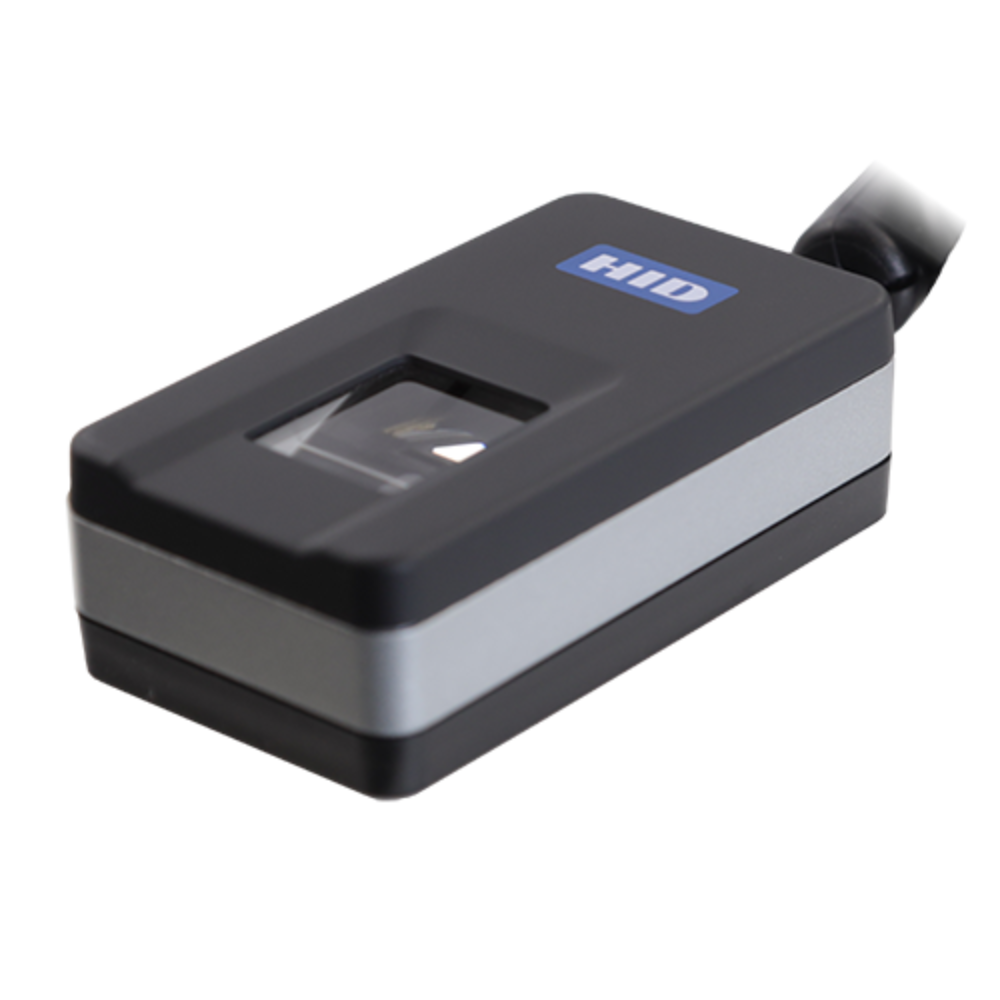

HID DigitalPersona 5200 Fingerprint Reader

FIPS 201/PIV, FAP 20 certified USB fingerprint reader

Key Features:

Small form factor
FIPS 201/PIV certified
FAP 20 certified
500 ppi images
IP64 whole reader, IP65 capturing window
Compatible with HID DigitalPersona Biometric SDKs for Windows®, Linux and Android

The HID DigitalPersona 5200 Reader is a compact optical single fingerprint reader that meets FIPS 201/PIV and FAP 20 standards. Designed to meet the high-volume requirements of large-scale Civil ID and commercial enrollment and authentication applications, the reader rapidly captures and produces fingerprint images at 500 ppi resolution in ANSI and ISO/IEC standard formats.

Incorporating a durable IP65-rated glass platen that is also highly resistant to chemical and physical damage
The DigitalPersona 5200 Reader is well suited for harsh environments for a variety of applications

How It Operates

Optical Capture: When you press your finger against the blue-illuminated glass platen, internal LEDs light up the fingerprint ridges and valleys.

Image Conversion: A high-sensitivity optical sensor turns the light reflection into an 8-bit grayscale digital image.

On-Board Calibration: Built-in hardware automatically adjusts calibration and handles data transfer over a high-speed USB connection.

Spoof Rejection: The device features counterfeit finger rejection technology to detect and block fake or latent prints.

Template Extraction: Software uses tools like the DigitalPersona Software Development Kits (SDK) and FingerJet biometric engine to map distinct fingerprint features into a secure, hashed numerical template rather than saving an actual picture of your fingerprint.

HID DigitalPersona 5300 Module

The DigitalPersona 5200 Fingerprint Reader can be used with any standards-compatible fingerprint template extractor or matcher, including the HID DigitalPersona Biometric SDK.

Together, these HID products provide an unmatched ability to authenticate even the most difficult fingerprints accurately and rapidly.
