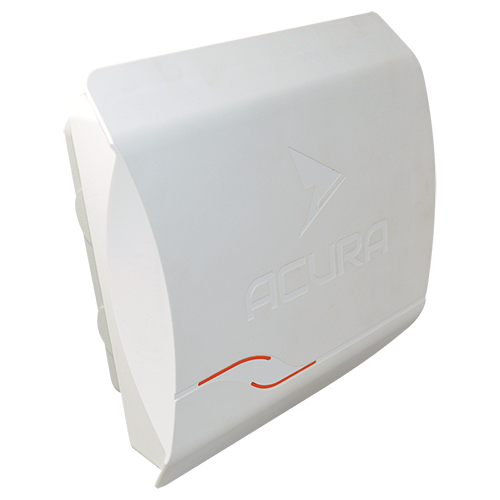

HID Acura EDGE-30R+ UHF RFID Reader
AutoID integrated reader for vehicle access control operations
Key Features
- Plug-&-play reader offers automatic reading to ensure effortless integration
- All-in-one design includes an integrated antenna and reader
- Easy installation with no coaxial or shielded cables required
- Interface board that simplifies installation with convenient connections to controllers, inputs and outputs
- Compact and robust with an IP67 rating, designed for external installation
- Relay for activating gates or data output user for interfacing with other peripherals.
The Edge-30R+ is a powerful UHF RFID reader primarily used for vehicular access control. Its standout feature is its automatic reading capabilities, making it user-friendly without the need for complex API development.
The reader can automatically read tags and transmit data in real-time to a computer or access controller using the most common available communication protocols in market: Ethernet TCPIP, Wiegand 26/34 bits, Clock & Data (Abatrack) 10/14 digits, and RS-232.
- In addition to its impressive reading capabilities, the Edge-30R+ also features an HTML page for easy configuration and maintenance.
- It also boasts the “AutoID Secure System,” which enhances security by preventing cloning and ensuring that each end user is uniquely identified.
- The Edge-30R+ features a very simple installation process, eliminating the need for coaxial or shielded cables. It only requires the use of two conventional network cables to complete the installation: one for power and network connection (PoE) and another for other communications, input, and output (relay).
The power supply of the Edge-30R+ supports IEEE 802.3af standard PoE (Power Over Ethernet) and there is also the possibility to use a PoE injector of the same standard.
Overall, the Edge-30R+ is an exceptional RFID reader that offers outstanding performance, security and ease of use.
